Analogue: 12345 Elte,
Order code: COM51600411
Speed range: 6000 - 24000 rpm,
Toolholder: ER 32,
Power: 3,3 kW,
Type of cooling: Fan on shaft
Motor type: manual tool changer
Processed material: Wood, PVC/plastic, Aluminum, Composites

Analogue: 12345 Elte,
Order code: COM51600380
Speed range: 6000 - 24000 rpm,
Toolholder: ER 32,
Power: 4,5 kW,
Type of cooling: Fan on shaft
Motor type: manual tool changer
Processed material: Wood, PVC/plastic, Aluminum, Composites

Analogue: 1245 Elte,
Order code: COM51600462
Speed range: 3000 - 24000 rpm,
Toolholder: ER 32
Power: 4,5 kW,
Type of cooling: Electric fan cooling (24VDC)
Motor type: manual tool changer
Processed material: Wood, PVC/plastic, Aluminum, Composites

Order code: COM51600398
Speed range: 6000 - 24000 rpm,
Toolholder: ER 32
Power: 6.0 kW,
Type of cooling: Shaft driven fan cooling
Motor type: manual toolchager
Processed material: Wood, PVC/plastic, Aluminum, Composites

Analogue: 123 Elte,
Order code: COM51600395
Speed range: 3000 - 24000 rpm,
Toolholder: ER 32,
Power: 6,0 kW,
Type of cooling: Electric fan cooling (24VDC)
Motor type: manual tool changer
Processed material: Wood, PVC/plastic, Aluminum, Composites

Analogue: 123 Elte
Order code: COMTC710001
Power: S1 – 3,8 kW, S6 – 4.6 kW
Speed range: 3000-24000 rpm
Voltage: 380V
Base frequency: 200Hz
Maximum frequency: 400Hz
Tool holder: ISO30 cone with ER 32 nut
Motor type: Automatic tool changer
Processed material: Wood, PVC/plastic, Aluminum, Composites

Analogue: 123 Elte
Order code: COMTC710009
Power: S1 – 7,5 kW, S6 – 9,0 kW
Speed range: 3000-24000 rpm
Voltage: 380V
Base frequency: 200Hz
Maximum frequency: 400Hz
Tool holder: ISO30 cone with ER 32 nut
Motor type: Automatic tool changer
Processed material: Wood, PVC/plastic, Aluminum, Composites

Leadshine CABLEH-BM3M0 encoder cable for CS-M/CS-D series closed loop stepper systems.
3.0 meters (9.8 foots) long.

Leadshine CABLEH-RZ3M0 power cable for CS-M/CS-D series closed loop stepper systems.
3.0 meters (9.8 foots) long.

Leadshine CS-D808 closed loop stepper driver.
Input voltage of 20 - 80 VDC.
Output current of 0.50 - 8.00 A.
CS-D808 takes step & direction (PUL/DIR) or CW/CCW control modes. Closed loop stepper driver Leadshine CS-D808 is easy to setup and configure via DIP switches.

Leadshine CS-M22313 NEMA 23 closed loop stepper motor.
Holding torque 1.3 Nm.
Current 4.00 A.
75 mm (2.95 inch) long.
8 mm (0.315 inch) shaft size.
Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder.

Leadshine CS-M23485 NEMA 34 closed loop stepper motor.
Holding torque 8.5 Nm.
Current 6.00 A.
147 mm (5.79 inch) long.
14 mm (0.551 inch) shaft size.
Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder.

Leadshine DM432C stepper driver.
Input voltage of 18 - 40 VDC.
Output current of 0.10 - 3.20 A.
DM432C takes step & direction (PUL/DIR) or CW/CCW control. Stepper driver Leadshine DM432C is easy to setup and configure via DIP switches.

Leadshine DM556E stepper driver.
Input voltage of 18 - 50 VDC.
Output current of 1.80 - 5.60 A.
DM556E takes step & direction (PUL/DIR) control. Stepper driver Leadshine DM556E is easy to setup and configure via DIP switches.

Leadshine DM860E. 2-phase and 4-phase stepper driver.
Input voltage of 24 - 74 VDC.
Output current of 2.40 - 7.20 A.
DM860E takes step & direction (PUL/DIR) or CW/CCW control. Stepper driver Leadshine DM860E is easy to setup and configure via DIP switches.

Leadshine EM556S stepper driver.
Input voltage of 20 - 50 VDC.
Output current of 0.50 - 5.60 A.
EM556S takes step & direction (PUL/DIR) or CW/CCW control. Stepper driver Leadshine EM556S is easy to setup and configure via DIP switches.

Leadshine EM705 stepper driver.
Input voltage of 20 - 70 VDC.
Output current of 0.50 - 7.00 A.
EM705 takes step & direction (PUL/DIR) or CW/CCW control. Stepper driver Leadshine EM705 is easy to setup and configure via DIP switches.

Fulling Motor FL39ST38-0504B-5 NEMA 16 stepper motor.
Holding torque 0.29 Nm.
Current 0.50 A.
38 mm (1.5 inch) long.
5 mm (0.197 inch) shaft size.

The wrenches GTS25 are designed to screw and unscrew the nuts GTS25.

These toolholders are made for the TeknoMotor ATC71. They should also work in HSD ES915 and other ISO30 machines. But when working with 24000 rpm , always verify the fit is 100% correct. Be very careful when using other standard ISO30 toolholders in ATC71 motor, since most are only balanced up to 8000RPM. This can cause bearing damage to the milling motor. For this reason we always advise to use the type we offer here, which is really made for this job. • Toolholder ISO30 according to DIN69871
• Precision class: AT3 Dynamic balancing: G2.5 (ISO1940) @ 24000rpm
• Includes pullstud (TeknoMotor/HSD/ELTE compatible)
• Includes balanced ER32 collet nut
• Colletsize: ER32

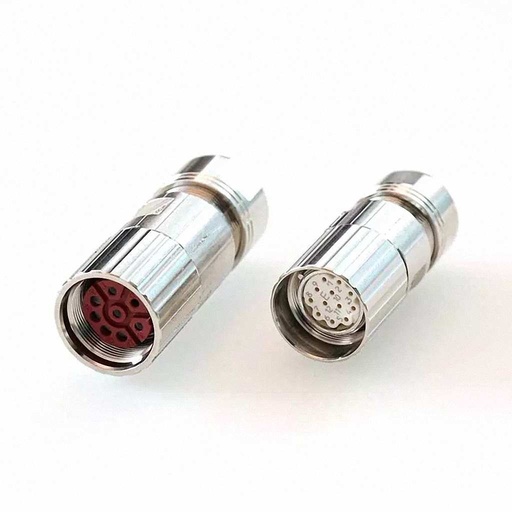

Connector Set, Power and Signal Connectors for ATC71 serias

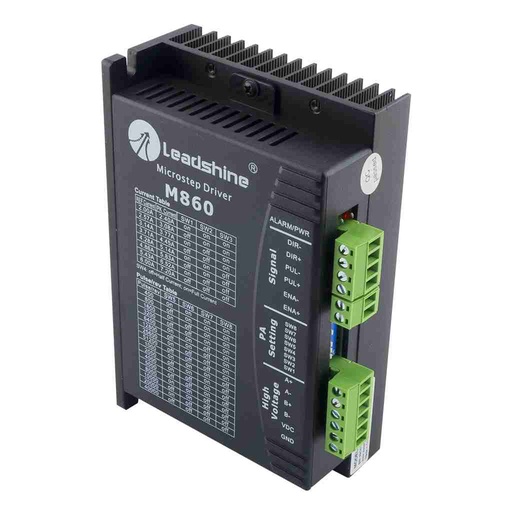

Leadshine M860 stepper driver.
Input voltage of 24 - 80 VDC.
Output current of 1.80 - 7.20 A.
M860 takes step & direction (PUL/DIR) or CW/CCW control. Stepper driver Leadshine M860 is easy to setup and configure via DIP switches.
